Ph7mm Outdoor RGB 32x32dots waterproof led modules
Подробная информация о продукте:
| Place of Origin: | CHINA |
| Фирменное наименование: | MUENLED |
| Сертификация: | CCC,FCC,ISO,9001,ROHS,CE |
| Model Number: | PH7 |
Оплата и доставка Условия:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | wooden case |
| Delivery Time: | 7 days |
| Payment Terms: | EXW,FOB,CIF |
| Supply Ability: | 10000PCS |
|
Подробная информация |
|||
| Usage: | Outdoor | Tube Chip Color: | Full Color |
|---|---|---|---|
| Display Function: | Video | Pixels: | 7mm |
Характер продукции
- Model: LCC-P7-O/F/T-B
- Shipping Weight: 1.25kg
- 1199 Units in Stock
- Manufactured by: Outdoor LED Module

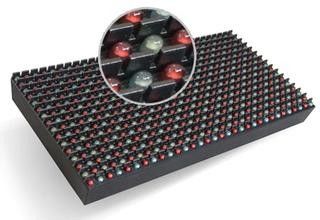

Ph7mm Outdoor RGB 32x32dots waterproof led modules
Size:224mmx224mm, Resolution: 32x32 dots. including DATA and Power cable, Epistar LEDs.
|
Resolution |
32(H)×32(V) |
|
Pitch |
7mm |
|
Density |
20408 pixels/㎡ |
|
LED Arrangement |
1R1G1B-Shape 246 LED |
|
Driver Mode |
Dynamic 1/4 Duty constant current |
|
Size |
224mm×224mm |
|
Mask |
Pure Black mask-high contrast screen |
|
Electricity Parameter |
|
|
Optical Ratings |
|
|
Brightness |
≥10000cd/㎡ |
|
View Angle |
110 degree ( horizontal) 70 degree(vertical) |
|
Best View Distance |
4m-70m |
|
Control System |
|
|
Support |
Sync LED Control system and Async LED Control Card |
|
Frame Update Frequency |
60-80Hz |
|
Screen Refresh Frequency |
480Hz |
|
Interface |
Hub75 |
|
Reliability |
|
|
Operating Life |
100,000 hours |
|
MTBF |
5000 hours |
|
Protection Level |
IP65:waterproof |
