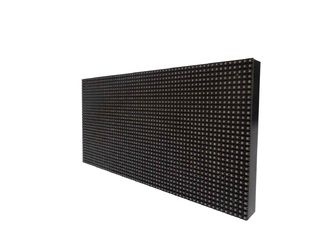

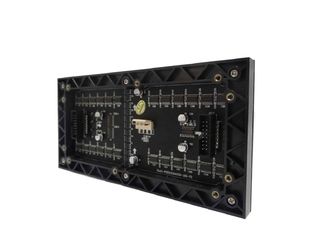

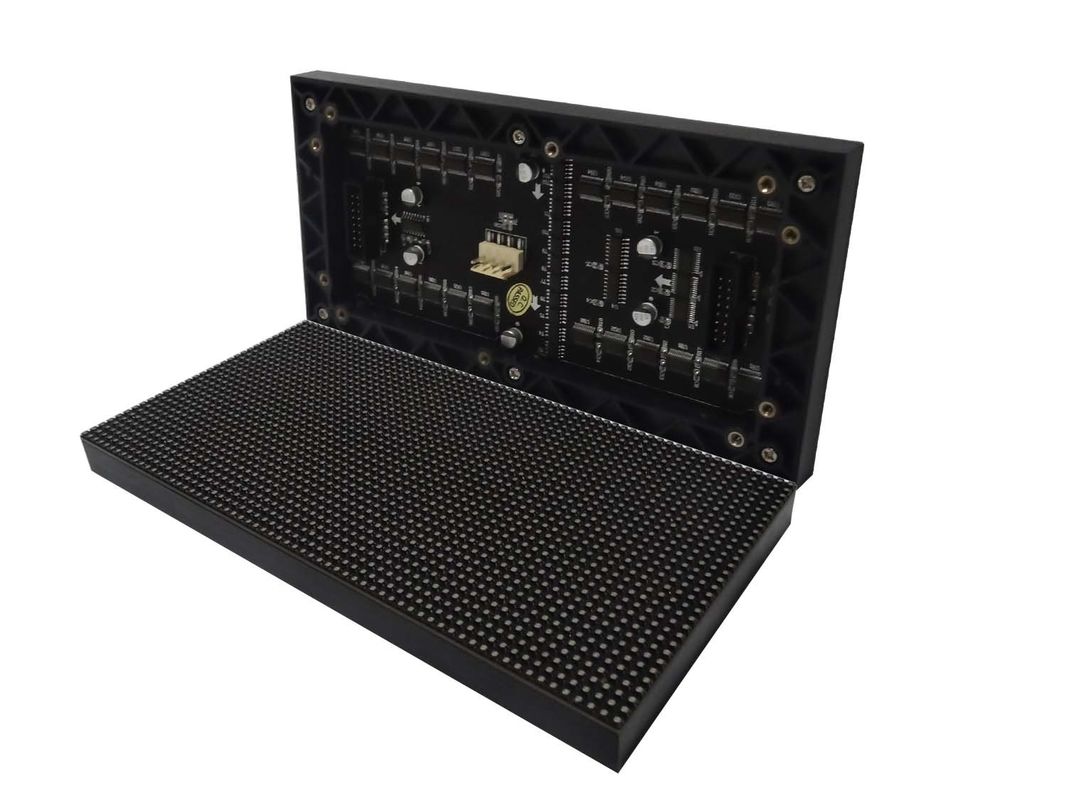

MUENLED-PH10 Indoor SMD led Diplay Module
Подробная информация о продукте:
| Place of Origin: | china |
| Фирменное наименование: | muenled |
| Сертификация: | CCC,FCC,ISO,9001,ROHS,CE |
| Model Number: | PH10 |
Оплата и доставка Условия:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Цена: | US$ 9.7 |
| Packaging Details: | wooden case |
| Delivery Time: | 7 days |
| Payment Terms: | EXW,FOB,CIF |
| Supply Ability: | 10000PCS |
|
Подробная информация |
Характер продукции
|
Parameters |
PH10 Indoor SMD series |
|
Pixel Pitch |
10 mm |
| Pixel Density |
10000Dots/m² |
| Pixel Configuration |
3 in 1 |
| LED Standard |
SMD3528 |
| Module Size |
320*160mm |
| Module Resolution |
512 (Dots) |
| Module Weight |
0.4kg |
|
Brightness |
≥2000cd/m² |
|
Displays colors |
10.7Million color |
|
Protection Level |
IP 43 |
|
Control Mode |
Synchronous/Asynchronous |
|
Driving Method |
Constant Current 1/8scan |
|
Refresh Rate |
800Hz |
|
Viewing Angle (H/V) |
H:120° V:120° |
|
The optimal viewing distance |
10-100mm |
|
Consumption |
Max.consumption 800w/m² Average.consumption 250w/m² |
|
LED Lamp Parameters |
(R) γ d:(625-628nm) IV:(600mcd) (G) γ d:(523-525nm) IV:(1200mcd) (B) γ d:(470-472nm) IV:(350mcd) |
|
Comunication Type |
3G WIFI Cats ≤ 100m Multimode optical fiber ≤ 500m Single Mode optical fiber ≤ 1500m |
| The above content is for reference | |
 |
|
