Lumen C-Power 1200 LED Message Control Card
Подробная информация о продукте:
| Place of Origin: | china |
| Фирменное наименование: | muenled |
| Сертификация: | CCC,FCC,ISO,9001,ROHS,CE |
Оплата и доставка Условия:
| Minimum Order Quantity: | 3PCS |
|---|---|
| Цена: | US$ 35 |
| Packaging Details: | wooden case |
| Delivery Time: | 7 days |
| Payment Terms: | EXW,FOB,CIF |
| Supply Ability: | 100PCS |
|
Подробная информация |
Характер продукции
- Model: LCC-LUMEN-C-Power1200
- Shipping Weight: 0.25kg
- 256 Units in Stock
- Manufactured by: Lumen

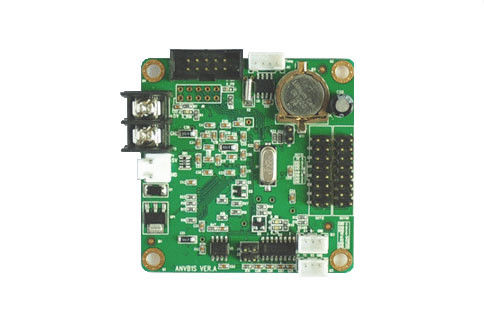

Lumen C-Power 1200 LED Message Control Card
C-Power1200 has a very small size, but sharing the same CPU platform with other C-Power products.All of C-Power family products have the same perfect second development interface and control protocol.
C-Power1200 has very high performance and very cheap cost, so it has very highly competitive.
【Feature and Specification】
|
Control size
(mono/RG color)
|
Mono or two colors: 512*16 or , 256*32 pixels
|
|
Memory
|
Totol size: 2MByte(16Mbit)
Program size: 1.5MByte
Font library space: 512KByte
|
|
Program |
All programs are transmitted by compression package, and then decompressed on control card.
Supports animation , picture, text, clock, temperature, etc.
Text program edit in any language, any font and any size, free adjust Transparent text and clock program can be edit to cover photo More than 60 effects for text and picture, such as: snow fall, mosaic, slide zebra, fan open and etc.,
With multi-program mode. Stores up to 512 programs to the Led screen.
With hierarchical management of programs in menu type so as to keep clear structure and convenient maintenance.
Supports programs played at the appointed period (for example: week, hour, minute )
|
|
Separate window mode
|
Supports the segmentation of up to ten playing windows for each program. Supports playing the content in different formats for each playing window.
|
|
Affiliated features
|
With real-time clock (RTC) management and setting, support digital and analogue clock.
Supports environmental data programs like temperature, etc.
Supports sensors installed externally (32-grade brightness)
|
| Font library |
The card can be stored different fond library and can be changed free, such as English, Chinese (simplified or traditional), Japanese, Korean and etc.,
|
|
Standard software
|
LedCenterV4.3.0 or above
|
|
Standard communication mode
|
One RS232/RS485 port: maximum baud rate: 115200
|
| Keyboard | Program list edit and display control by keyboard |
|
External communication components
|
Supports various wireless communication modes: GPRS, ZigBee, RF...
|
|
Others
|
Provides customized development interface and its manual, the interface is same to C-Power5200
Provides demonstration program and source code forcustomized development
|
